Features:

  • Body Material: AISI 304 / AISI 316
  • Submerged Part Material: AISI 304 / AISI 316
  • Bridge Velocity: 1,2 – 2 m/min
  • Standard Accessory: Notch weir, Scum Scraper, Scum Funnel and Bottom Scrapers, Torque switch
  • Optional Accessory: Snow scraper, Electrical Control Panel

Contact us for rotating sludge scraper prices and customization. We manufacture and produce wastewater equipment in our factory in Turkey.

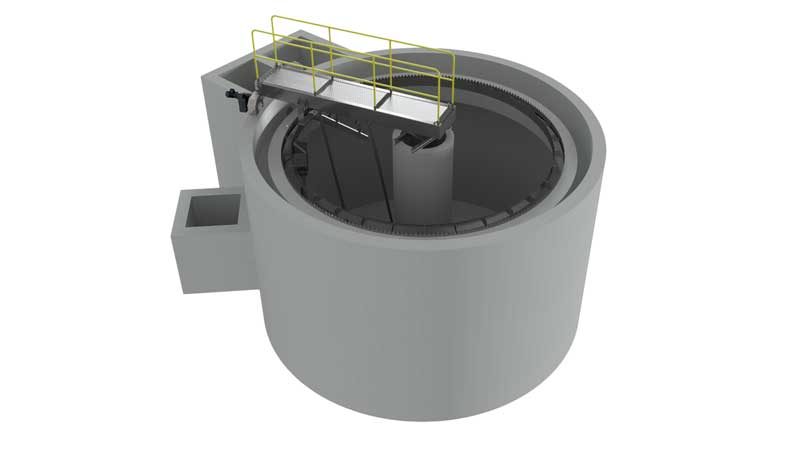

The rotary scraper bridges are the equipment used in clarifiers (aka settling basins, pool). They are used to gather/collect the settled sludge into the center cone of the clarifier. The sludge collected in the cone is then recycled to the aeration basin and/or delivered to the sludge thickener basins.

The bridge body is generally made of St 37 + Epoxy Painted or galvanized. It can also be manufactured from 304 and 316 quality stainless steel upon request. Corrosion resistant cloth rubber is used in the bottom scraper. Corrosion resistant movable Delrin wheels are used where the scraper plates are connected with rubber scrapers.

The equipment performs bottom scraping by rotating around its base located in the center of the cylindrical pool.
